Détails sur le produit:
|
| Name: | Flexible Solar Panel | Panel Dimensions: | 115*98.5CM |
|---|---|---|---|
| Nom de marque: | KUOMAN | Work time (h): | 24 Hours |
| Material: | Poly Silicon | Color: | Black |
| Max. power: | 200W | Solar Cell: | Monocrystalline |
| Peak Voltage: | 18V | Installation: | Easy peel-and-stick adhesive backing |
| Output Tolerance: | ± 3% | Logo Print: | customization |
| Max System Voltage: | 1000/600 V | Maximum Power: | 100W |
| Accessories: | 10A charge controller, 10ft cable with alligator clips | Current At Pmax: | 8.34A(IMP) |
| Connector: | Compatible Connector | Maximum Power Voltage: | 18V |
| Mettre en évidence: | Black Flexible Solar Panel,Flexible Solar Panel 50W,50 Watt Flexible Solar Panel |
||

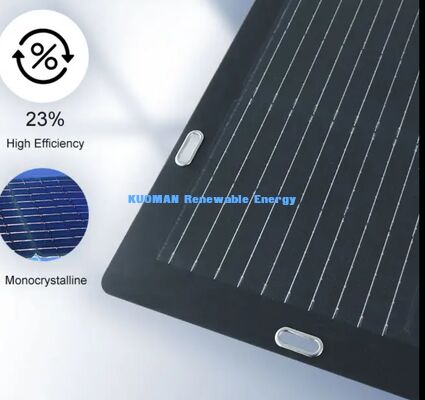

Flexible Solar Panel 50W Adventures and Mountain Climbing Panel
Product Overview
Redefining off-grid mobility, our ETFE Flexible Solar Panel Series delivers high-efficiency power (100W–500W) in an ultra-slim, bendable form factor. Engineered for life on the move, these panels are the preferred energy solution for RV travelers, marine vessels, outdoor gear manufacturers, and furniture-integrated solar applications across the Americas and Africa. With industry-leading 24.2% cell efficiency and a durable 7/9-layer composite construction, they convert sunlight into usable power even in tight spaces and curved surfaces where rigid panels cannot go.
Technical Specifications Table
| Parameter | Value |
|---|---|
| Model | KM-RX30W |
| Panel Type | Semi-Flexible PERC Monocrystalline |
| Cell Technology | Shingled (Imbrication), No Busbars |
| Peak Power (Pmax) | 31.5W (±3%) |
| Module Efficiency | 23.0% |
| Voltage at Pmax (Vmp) | 18.0V |
| Current at Pmax (Imp) | 1.47A |
| Open-Circuit Voltage (Voc) | 21.38V |
| Short-Circuit Current (Isc) | 1.62A |
| Dimensions (L×W×H) | 502 × 345 × 2.0 mm |
| Weight | 0.65 kg |
| Surface Material | Matte ETFE (Anti-Reflective) |
| Backsheet Options | White / Black Carbon Fiber Composite |
| Junction Box | IP65, Potting Encapsulated |
| Cable & Connector | 18AWG, MC4 or DC5521 Selectable |
| Operating Temperature | -40°C to +85°C |
| Max System Voltage | 60V DC |
Packaging & Logistics
| Configuration | Details |
|---|---|
| Individual Packaging | Protective foam sleeve + poly bag |
| Master Carton Qty | 20 panels |
| Master Carton Dimensions | 63 × 63 × 58 cm |
| Master Carton Weight | 16.0 kg |
| MOQ (Stock Color) | 100 units |
| MOQ (Private Label) | 500 units |
Why OEM Brands, Outdoor Retailers & Distributors Choose Us
For product developers integrating solar into backpacks, marine battery tenders, and off-grid accessories, the KM-RX30W delivers measurable differentiation:
True Merchandisable Efficiency: 23% real-world efficiency with shingled cells creates tangible marketing claims. No busbar shadows = better aesthetics and verifiable performance gains competitors cannot replicate with conventional string-ribbon designs.
Two Inventory SKUs, Unlimited Applications: White backsheet for hot-climate regions and sailboat dashboards; stealth black for premium hiking gear and tactical equipment. Same core panel, distinct visual identities—reduced stocking complexity for multinational distributors.
Certified Component-Level Safety: Full CE, ROHS, FCC compliance with optional UL recognition. Fire-retardant ETFE meets RVIA standards for recreational vehicle integration. OEM partners avoid costly recertification cycles.
Private Label Acceleration Program: Your logo, your packaging, your connector preference. We provide pre-certified reference designs, CAD files, and co-branded carton programs starting from 500-unit commitments. No engineering fees for standard color/connector combinations.
