Aperçu ProduitsCommon Solar Panel

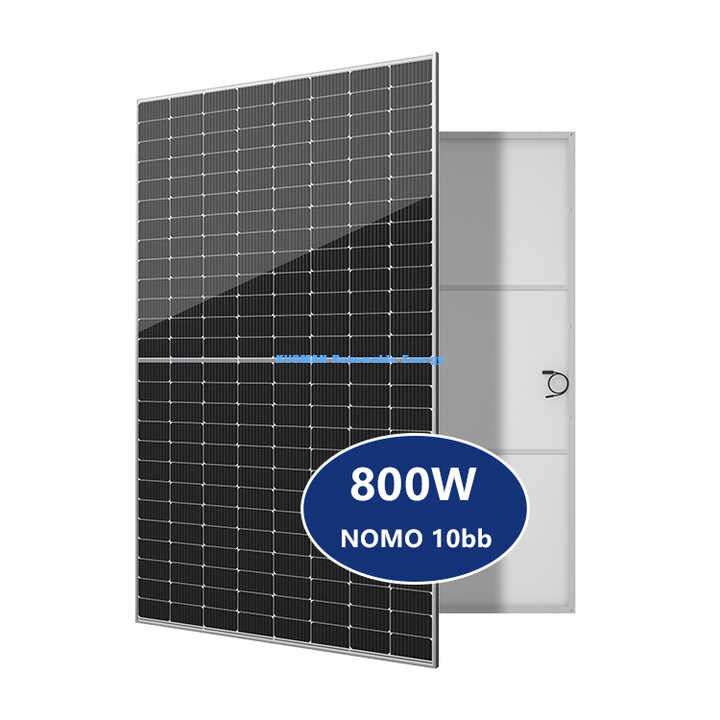

Customized 800W Solar Panel 48 Volts Solar Panels

Je suis en ligne une discussion en ligne

Customized 800W Solar Panel 48 Volts Solar Panels

Customized 800W Solar Panel 48 Volts Solar Panels
Customized 800W Solar Panel 48 Volts Solar Panels Customized 800W Solar Panel 48 Volts Solar Panels Customized 800W Solar Panel 48 Volts Solar Panels

Image Grand :  Customized 800W Solar Panel 48 Volts Solar Panels

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: Kuoman
Numéro de modèle: Panneau solaire KM800W
Conditions de paiement et expédition:
Quantité de commande min: 1
Prix: USD1-100/pcs
Détails d'emballage: emballage de carton international standard
Délai de livraison: en général deux semaines, plus de quantité en fonction de la quantité exacte
Conditions de paiement: L/C, L/C
Capacité d'approvisionnement: 10000 pièces/mois

Customized 800W Solar Panel 48 Volts Solar Panels

description de
Nom: Panneau solaire 800 W 48 volts Taille: 210mmx105mm
Efficacité du panneau: 22% Dimensions du panneau: 2650*1305*35mm
Délai (jours): Environ 10 jours ouvrables

Customized 800W Solar Panel 48 Volts Solar Panels



800W Solar Panel Specification:

Half-cut cell
Optimized power output underinter-row shading conditions.Reduced interconnection losses.



Highly reliable
Certified in TUV salt spray, ammoniacorrosion, 2400Pa wind load and



High efficiency
10Bus-Bar technology decreasesthe distance between bus barsand finger grid line which is bene-



Low hot-spot risk

The next-generation cell technologycan support improved temperature



Low degradation

1% first year degradation,0.4% linear degradation.



High yield

Effectively reducing BOS coststo achieve lower LCOE and



Structural Parameters
Cells
208pcs 182x91mm Monocrystalline solar cells
Module Dimension
2472x1134x35mm(LxWxH)
Module Weight
41kg
frame
Anodized aluminum profile
Junction Box
Rated current:30A, IP68, TUV
Cable
Length Negative 400mm/Positive 300mm
Connector
Compatible with MC4

Customized 800W Solar Panel 48 Volts Solar Panels 0

STC
Rated Maximum Power(Pmax)(W)
790
795
800
805
Open-circuit Voltag(Voc)(V)
67.23
67.51
67.68
67.89
Maximum Power Voltage(Vmp)(V)
16.65
16.72
16.78
16.81
Short-circuit Current(lsc)(A)
60.32
60.54
60.7
60.98
Maximum Power Current(lmp)A)
13.1
13.14
13.18
13.21
Module Efficiency(%)
21.07
21.2
21.33
21.47
STC
Irradiance 1000W/m2, cell temperature 25°C AM1.5G
Operating Conditions
Maxi System Voltage
1000V/1500V DC
Temperature range
-40°C~+85°C
Series Fuse Rating
30A
NOTC
45±2℃
Temperature Coefficient of Isc(α-Isc)
+0.04%/℃
Temperature Coefficient of Voc(β-Voc)
-0.24%/℃
Temperature Coefficient of Pmax(Y-Pmp)
-0.26%/℃

Customized 800W Solar Panel 48 Volts Solar Panels 1Customized 800W Solar Panel 48 Volts Solar Panels 2


KUOMAN Case:

Customized 800W Solar Panel 48 Volts Solar Panels 3

Customized 800W Solar Panel 48 Volts Solar Panels 4



FQA:

1.Whats your MOQ ?

our min quantity is 1 pieces.



2.Whats your payment ways ?

we could accept T/T, L/C.



3.Whats your delivery time ?

Generally it will take about 20 days for production on receipt of advance
payment.
