Détails sur le produit:
|
| Nom: | Panneau solaire se pliant portatif | Dimensions du panneau: | 115*98.5CM |
|---|---|---|---|
| Nom de marque: | KUOMAN | Temps de travail (h): | 24 heures |
| Matériel: | poly silicium | Couleur: | Noir |
| Max. Pouvoir: | 200W | Tension maximale: | 37V |
| Installation: | Facile à peeler et à coller | Tolérance de sortie: | ± 3% |
| Impression du logo: | Personnalisation | Max System Voltage: | 1000/600 V |
| Puissance maximale: | 100W | Accessoires: | Contrôleur de charge 10 A, câble de 10 pieds avec pinces crocodiles |
| Courant à Pmax: | 8.34A ((IMP) | Connecteur: | Connecteur compatible |
| Voltage de puissance maximal: | 18V |
200W Emergency Energy Supply – Solar When the Grid Fail Flexible Solar Panel
Advantage of 200W flexible solar panel :
1)Ultra thin and light;
2)IP68 waterproof level;
3)With long time life span;
4)Full power output;
5)Multifuntion port for more different devices,like 24V battery,power station,power generator,power bank;
6)Can be bent to 360°;
7)Don't worry the solar cell with damage to lead to short current and fire risk--safe and stable;
8)With transparent material with bifacial function ;
9)with CE,ROHS,FCC certification;
10)With short leading time for 500-1000PCS for only 20 days.
| Power |
Open-circuit (Voc/V) |
Short-circuit
(Isc/A) |
Design Voltage (Vmp/V) |
Max. Power Current (Imp/A) |
Solar Panel Efficiency(%) |
Product Architecture |
Size (mm) |
| 100W | 21.9V | 5.75A | 19.2V | 5.5A | 24.20% | 7/9 layer | 918*580*2.5 |
| 120W | 22.6V | 6.93A | 19.2V | 6.63A | 24.20% | 7/9 layer | 1084*580*2.5 |
| 150W | 21.21V | 9.24A | 18V | 8.84A | 24.20% | 7/9 layer | 1020*764*2.5 |
| 180W | 21.21V | 11.1A | 18V | 10.61A | 24.20% | 7/9 layer | 1203*764*2.5 |
| 200W | 23.1V | 11.09A | 19.8V | 10.6A | 24.20% | 7/9 layer | 1316*764*2.5 |
| 250W | 22.5V | 13.89A | 19.2V | 13.28A | 24.20% | 7/9 layer | 1279*948*2.5 |
| 300W | 44.9V | 8.64A | 38.5V | 8.26A | 24.20% | 7/9 layer | 1618*948*2.5 |
| 350W | 44.54V | 9.87A | 37.9V | 9.44A | 24.20% | 7/9 layer | 1799*948*2.5 |
| 400W | 44.54V | 11.62A | 37.8V | 11.11A | 24.20% | 7/9 layer | 1771*1132*2.5 |
| 450W | 42.42V | 13.84A | 36.12V | 13.23A | 24.20% | 7/9 layer | 1977*1132*2.5 |
| 500W | 42.42V | 15.26A | 36.12V | 14.59A | 24.20% | 7/9 layer | 2164*1132*2.5 |

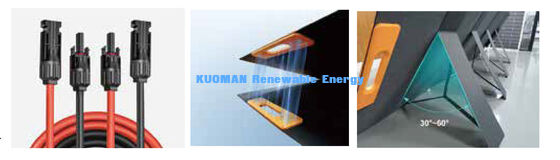

Product Feature:
1.Fully waterproof conjunction box with silicon glue,specially with diode built in to
avoid conversed connection;
2. Eyelet with Larger size ,easy to fix ;
3. 10PCS of eyelets left for multiple location to fix;
4.High efficiency solar cell up to 23% ;
5.Universal and robust MC4 connector .
Our version:
Organizes specs into benefit-focused sections
Highlights the professional applications
Adds convincing comparisons ("lighter than 2 water bottles")
ncludes technical differentiators (current distribution, temperature performance)
Uses actionable language for commercial buyers
Would you like me to emphasize any particular feature for your target market?
Flexible Solar Panel Specification:
| Brand Name | KUOMAN SOLAR |
| Model Number | KM FL2000W |
| Material | FFC compound material+EVA+Mono solar cell+EVA+Carbon Fiber |
| Color | White/Black |
| Cell size | 119.5*103*8cm |
| Panel Dimensions | 119.5*103*8CM |
| Panel Efficiency | >=23% |
| OEM/ODM | Availble |
| Warranty | 1year |
