Détails sur le produit:
|
| Inverter Compatibility: | Micro-inverter, string inverter | Name: | Common Solar Panel |
|---|---|---|---|
| Material: | Silicon | Weather Resistance: | IP65 |
| Panel Dimensions: | 1722x1134x30mm | Warranty: | 10 years product warranty, 25 years performance warranty |
| Cell Type: | Monocrystalline/Polycrystalline | Certifications: | UL, CE, TUV, IEC |
| Poweroutput: | 250W - 700W | Weight: | 18kg - 20kg |
| Type: | Monocrystalline / Polycrystalline | ||
| Mettre en évidence: | IP68 Common Solar Panel,IP68 Solar Panel 250W,Cell Monocrystalline Solar Panel |
||

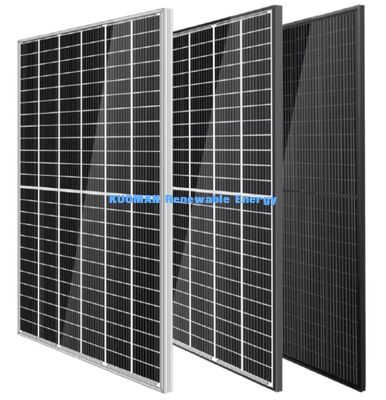

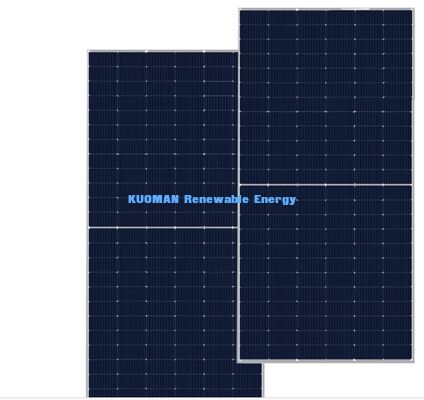

IP68 Rated Solar Panel (TUV Certified) Cell Monocrystalline Clean Energy
This monocrystalline solar panel series features 108 high-density N-Type cells engineered for commercial and industrial applications. With IP68-rated junction box and corrosion-resistant aluminum frame, it delivers reliable power generation in coastal, arid, or humid environments across North America, South America, Southeast Asia, and Africa.
KUOMAN Solar Panel Feature:
182mm N-Type monocrystalline cells with zero-gap design for maximum space efficiency
Heavy-duty frame withstands 2400Pa wind loads and 5400Pa snow loads
Anti-PID technology ensures <3% annual degradation in high-humidity regions
Optimized for low-light conditions with 92% dawn/dusk performance retention
Pre-drilled mounting holes compatible with global racking systems
Kuoman Solar Panel Parameter:
| Category | Specification |
|---|---|
| Electrical Parameters | |
| Max Power (Pmax) | 410W-430W (5 power grades) |
| Open Circuit Voltage (Voc) | 37.73V-38.49V |
| Short Circuit Current (Isc) | 13.91A-14.23A |
| Mechanical Specifications | |
| Cell Arrangement | 108 cells (6×18 configuration) |
| Frame Material | 35mm anodized aluminum alloy |
| Front Glass | 3.2mm tempered, anti-reflective coating |
| Environmental Ratings | |
| Salt Mist Resistance | IEC 61701 Class 4 (96-hour test) |
| Hail Resistance | IEC 61215 (25mm hail at 23m/s) |
| System Compatibility | |
| Fuse Rating | 25A per series string |
| Connector Type | MC4-Evo2 compatible |
KUOMAN Case:
Standard Packing Options:
1pc, 2pcs, 5pcs, 10pcs, or 25pcs per carton/pallet.
These options are designed to accommodate different order sizes and ensure safe transportation.
Solar Panel Applicant:
Designed for energy developers and contractors deploying utility-scale solar farms in North America, commercial rooftop installations in Southeast Asia, and off-grid systems in Africa and South America. The panel's enhanced durability meets specific regional challenges including salt corrosion, high humidity, and extreme temperature fluctuations.
