Détails sur le produit:
|
| Tension nominale: | 48V | Courant de charge maximum: | 200A |
|---|---|---|---|
| Capacité nominale: | 200Ah | Taille de la batterie: | 618*480*248mm |
| Énergie nominale: | 10240Wh | Poids net: | 85 kg ou plus |
| Type de cellule: | cellule lifepo4 | Courant de charge standard: | 100A |
| Décharge de la tension de coupure: | 56,2 V | Courant dérivé continu maximum: | 200A |
| Courant de décharge: | 10A | Terminal: | Plugin rapide |
| Mettre en évidence: | 51.2V 200Ah LiFePO4 powerwall battery,home solar storage LiFePO4 battery,CE certified powerwall battery for solar |
||
✅ Cheaper factory direct price: 10-year lithium battery manufacturer with long-term strategic cooperation with cell & BMS suppliers, cutting intermediate costs to offer unmatched wholesale pricing

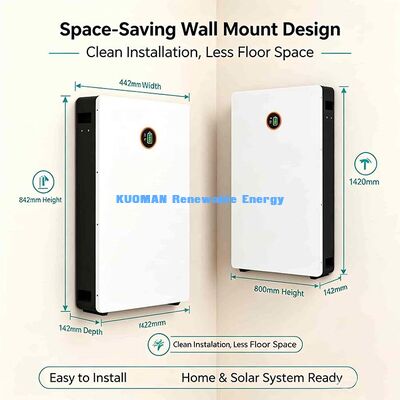

✅ Slimmer installation size: Only 14cm thickness vs thick traditional powerwalls, easier indoor wall mounting
✅ Longer cycle life: 8000 cycles vs 3000–5000 cycles of generic lithium batteries
✅ More flexible charging & discharging: 200A max charge/discharge, 400A short peak current for heavy home appliances
✅ Wider temperature adaptability: Discharge works normally down to -20℃, suitable for cold northern regions
✅ One-stop customization support: Custom casing, communication modules, capacity combinations for distributors & installers
| Specification | Details |
|---|---|
| Product Model | KM48V200R |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Nominal Energy | 10240Wh |
| Cell Type | LiFePO4 Cell |
| Standard Charging Current | 100A |
| Max Charging Current | 200A |
| Discharging Cut-off Voltage | 56.2V |
| Max Continuous Discharging Current | 200A |
| Discharging Current | 10A |
| BMS Protection | Overcharging/over-discharging, Over-voltage/Over-current, Short Circuit, etc. |
| Case Material | Metal/Custom material |
| Terminal | Fast plug-in |
| Battery Size | 618*480*248mm |
| Net Weight | 85kg |
| Communication | CAN/RS485/RS232/Bluetooth (optional) |
| Shipping Method | Sea/Air/Railway |
| Delivery Time | Quantity within 100pcs: 5-12 days |

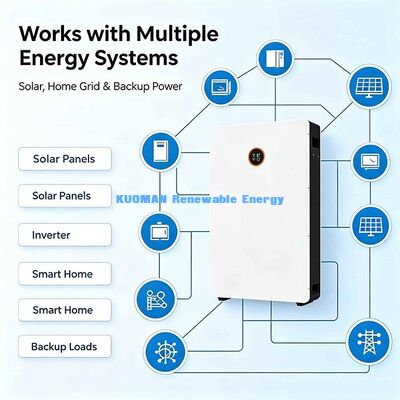

A: It works with solar panel arrays, diesel generators and municipal grid power. It supplies stable backup power for home refrigerators, air conditioners, lights, water pumps and essential household loads up to 10kW total power demand. Compatible with most mainstream 48V solar hybrid inverters.
A: Our EVE A-grade LiFePO4 cell design delivers more than 8000 deep discharge cycles, equivalent to over 10 years of daily regular use, much longer than lead-acid or low-grade lithium batteries.
A: Yes. LiFePO4 material features extremely low thermal runaway risk, plus built-in intelligent BMS with full overcharge/short-circuit/temperature protection. It holds CE, UL, RoHS global safety certifications, safe for bedroom, garage and utility room wall mounting.
A: Yes. Multiple units can be parallel connected to expand total storage capacity and power output. Optional CAN/RS485 communication ports realize unified battery monitoring for the whole battery bank.
A: Charging environment: 0℃ ~ 55℃; Discharging environment: -20℃ ~ 60℃. It can stably supply power in cold winter areas and hot tropical regions.
